L-Shaped Dormer Loft Conversions in Sheffield
Explore a connected dormer layout where the main roof and rear outrigger make it feasible.
Request a free quoteDormer construction and staircase details

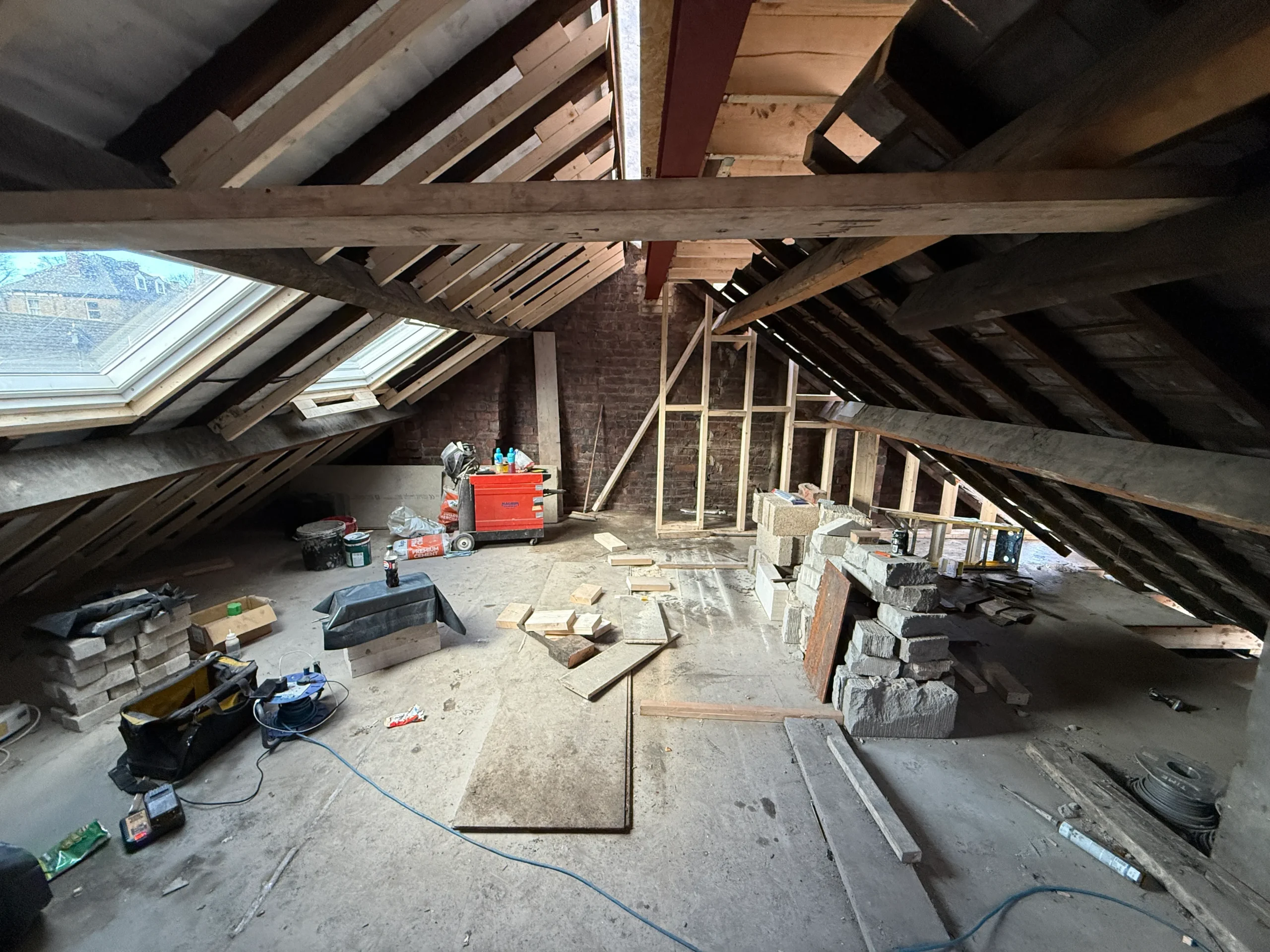

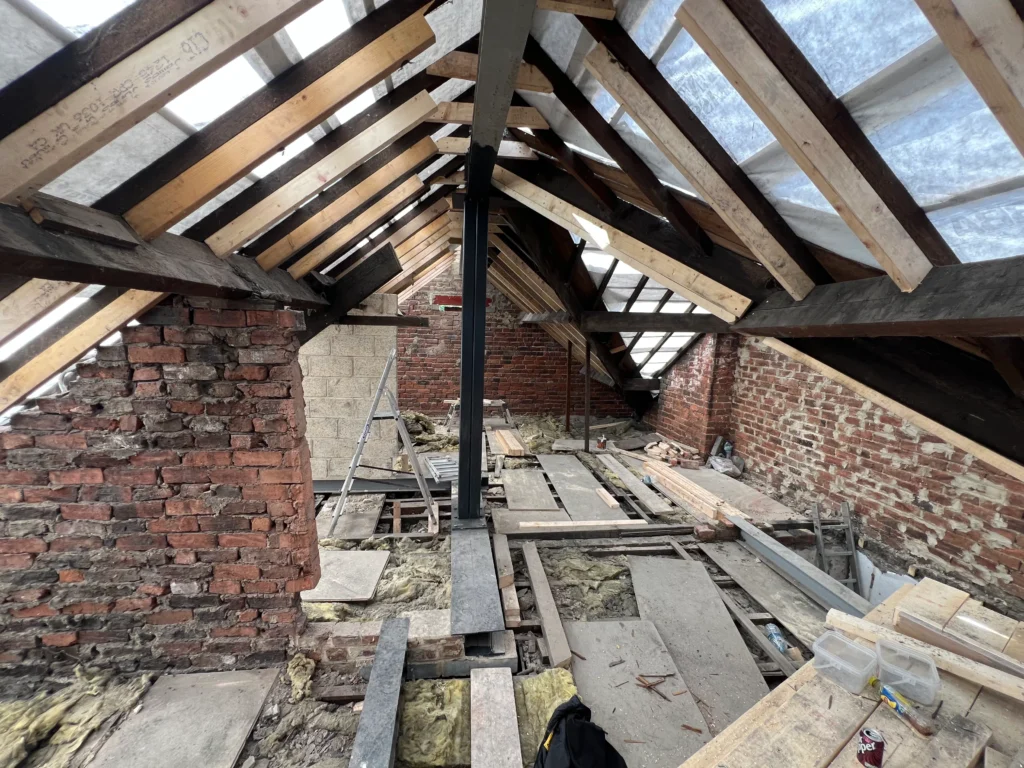

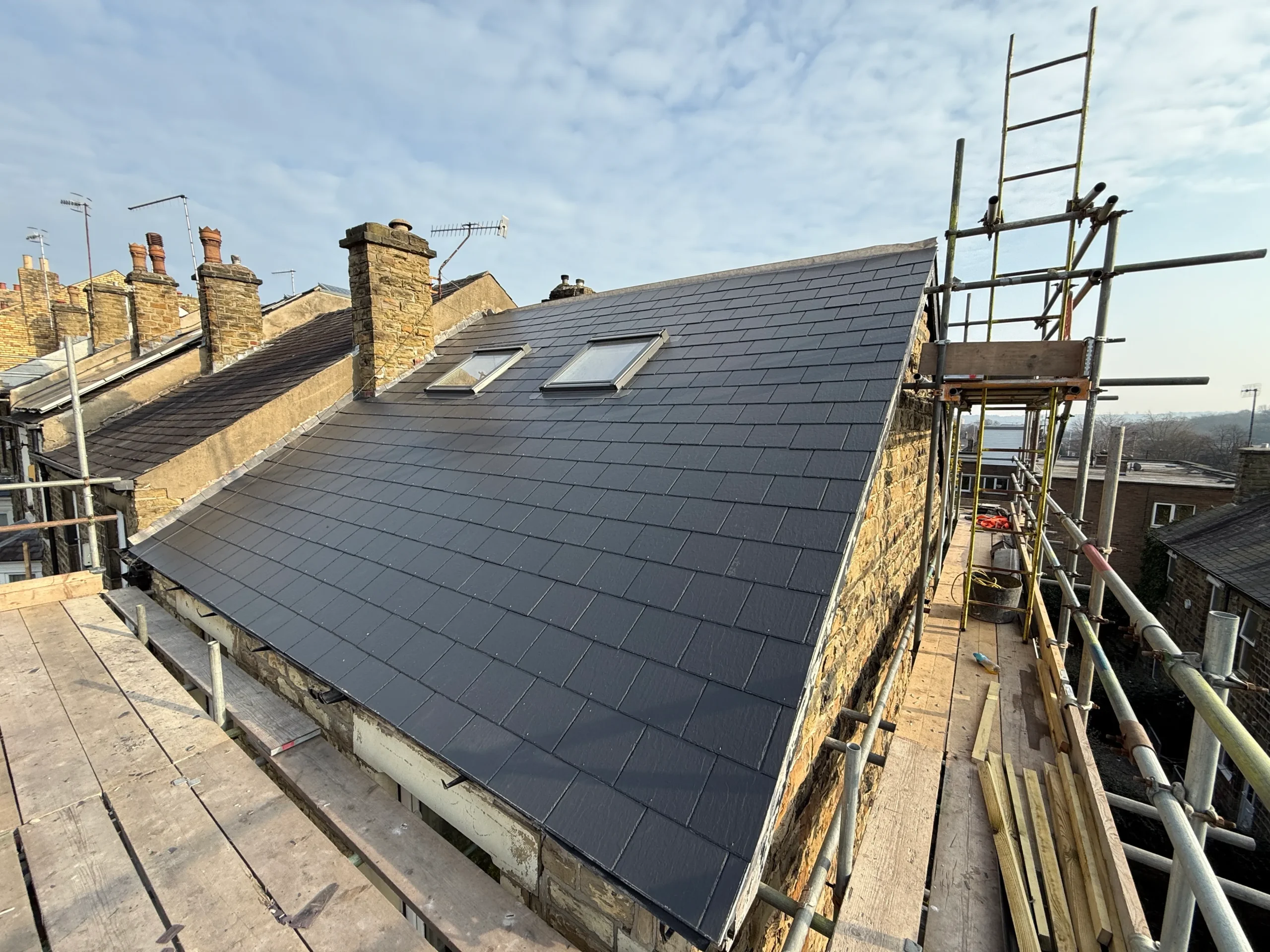

Photographs from our rear dormer project archive show framing and staircase work. The geometry and layout of an L-shaped design are assessed separately for each property.
What is a l-shaped dormer loft conversion?
An L-shaped dormer generally combines a dormer on the main roof with an additional section over a rear outrigger. The resulting plan can create more layout options than a single rear dormer, but it depends on the existing house form. It is not a design that can simply be applied to every terraced house.
Is it right for your home?
The survey should establish the rear roof arrangement, condition, usable height and connection between roof sections. Neighbour relationships and the planning context are important where the proposal brings windows or roof mass close to adjoining properties. The geometry needs to work after floor levels, insulation and structural members are included.
Tell us the property type, postcode and intended room use when you enquire. Existing plans, roof photographs and details of previous alterations can help the first conversation. A site assessment is needed before confirming feasibility.
Layout, daylight and everyday use
Use the junction between sections carefully. It can support a bedroom and bathroom arrangement, but narrow connections and awkward level changes can waste the apparent extra area. Plan drainage, landing space and furniture before dividing the footprint. Keep the circulation clear rather than maximising the number of doors.
Think about storage, heating, socket positions and where doors will open. These choices are easier to coordinate before the structural and first-fix stages. Our loft conversion ideas can help you develop a practical brief.
Structure and construction
Different roof sections can have different support conditions. The engineer needs to design the new loads and their connections to the existing building, including support over the outrigger. Roof junctions and drainage detailing require particular care to avoid creating a difficult maintenance point.
Ask who will provide calculations, arrange inspections and manage temporary support. Our steel beams for loft conversions page explains the connection between the structural design and installation.
L-Shaped Dormer loft conversion costs
We price the proposed work after assessing the property and specification. Roof form, access, staircase, structural support, bathrooms and finishes change the total. We do not give a universal starting price for this conversion type.
Use our loft conversion cost guide to understand the items to compare. It includes a real £55,000 Sheffield dormer project. That example is not a price promise for a different roof or specification. Confirm design fees, VAT, building control, decorating and any exclusions in your own quote.
Planning and Building Regulations
Planning permission and building-control requirements are separate. Some house roof alterations can qualify as permitted development within defined limits, while other proposals need an application. Property history, designated areas and removed rights can affect the answer. A habitable conversion needs the appropriate Building Regulations assessment.
Check the Planning Portal loft guidance and have the actual proposal checked before work starts. Party wall procedures may also be relevant where structural work affects shared walls.
Compare the alternatives
A conventional rear dormer may provide enough space with a simpler design. A rooflight conversion may suit the main roof if it already has usable height. Compare the extra accommodation created by the outrigger section with its additional structural, planning and construction demands.
Return to our Sheffield loft conversion service to compare the main types, or read boarding versus conversion if you only need storage.
Project examples and a clear quote
Our published Sheffield dormer cost breakdown shows how one completed job was priced. Ask which examples are relevant to your own property type and design. Discuss photographs, scope and finish together, because an attractive finished room alone does not show the structural work beneath it.
L-Shaped Dormer conversion FAQs
Can I assume both roofs can be converted?
No. Each section and the connection between them need structural and planning assessment. A measured survey should establish the usable space before a layout is promised.
What should I check in the quote?
Confirm design and engineering, the staircase, windows, insulation, services, bathroom fittings, decoration, VAT and completion documentation. Ask for exclusions and change procedures in writing.
Can you confirm a price from a photograph?
A photograph can help an initial discussion, but it cannot establish the structure, finished height or complete scope. A survey and agreed design are needed for a reliable quotation.
Talk to us about your property
Tell us where the property is, what you want to change and whether you have drawings. We can discuss the next practical step and arrange a survey where appropriate.
